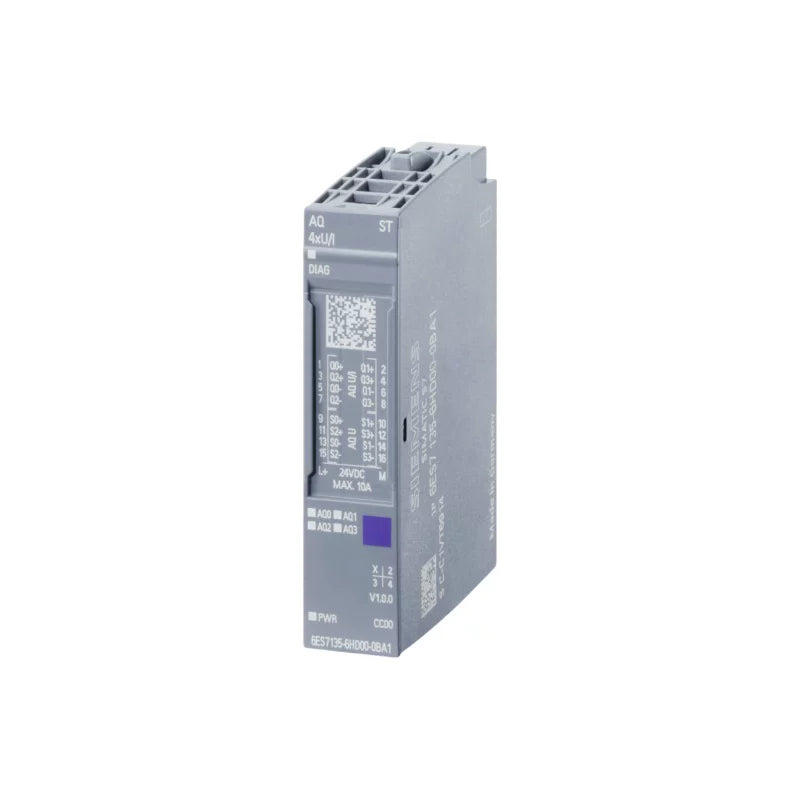

Owner-approved marketplace listing image. The product is procured after an order is placed; this image is not an actual stocked unit, lot, serial, condition, firmware, package-content, or availability claim.
Siemens
6ES7135-6HD00-0BA1
Siemens 6ES7135-6HD00-0BA1 I/O Module
Lifecycle: active
Available to order · Procured after order
- Usually ready to dispatch in 3–5 business days
- Estimated delivery 6–10 business days after dispatch
- Duty-included shipping on the approved route
Technical highlights
- Analog output count: 4
- Product weight: 0,039 Kg (Official product page / Net weight); 31 g (Weights / Weight, approx.)
- Supply voltage: 24 V
- Width: 15 mm
- Height: 73 mm
- Depth: 58 mm
- Operating temperature: 60 °C; Observe derating (Ambient temperature during operation / ● horizontal installation, max.); -30 °C; < 0 °C as of FS07 (Ambient temperature during operation / ● horizontal installation, min.); 50 °C; Observe derating (Ambient temperature during operation / ● vertical installation, max.)
- Typical power loss: 1.5 W
Overview
SIMATIC ET 200SP Analog Output Module AQ 4xU/I ST (6ES7135-6HD00-0BA1) is the reviewed Siemens exact-model record for an Analog output module. Selection remains tied to the complete manufacturer part number; verify hardware or firmware requirements and approved compatibility before ordering.
This record covers Siemens 6ES7135-6HD00-0BA1, named SIMATIC ET 200SP Analog Output Module AQ 4xU/I ST. It is classified in the reviewed source data as an Analog output module; nearby family members and suffix variants remain separate products.
Evidence-backed selection data currently includes Analog output count: 4; Product weight: 0,039 Kg (Official product page / Net weight); 31 g (Weights / Weight, approx.); Supply voltage: 24 V; Width: 15 mm; Height: 73 mm. Values retain their original labels, applicability and official source locators in the technical record.
The reviewed lifecycle state is active. Before ordering, verify the full MPN, hardware or firmware version when relevant, required accessories, actual included items, and the commercial offer for the physical unit being supplied.
Verified use context
- Use this record when the BOM or installed equipment calls for the exact MPN 6ES7135-6HD00-0BA1.
- Use the reviewed Analog output module classification to locate the correct product class, not to substitute a neighboring model.
- Confirm system fit from the exact technical values and separately approved directional relationships.
Selection checks
- Do not drop, add, or normalize away any manufacturer suffix.
- Do not substitute family-level maxima for an exact-model value.
- A successor or accessory relationship does not by itself prove drop-in compatibility.
- This offer is for a new unit. Use the current product page and checkout for price and fulfillment timing, and verify the version and included physical items before ordering.
Before ordering
- Match the manufacturer and complete MPN, including every suffix.
- Confirm hardware, firmware or unit version separately when required.
- Confirm actual inclusions, condition, quantity and dispatch terms in the offer.
- Treat successor and compatibility relationships as directional and subject to their stated conditions.
Technical specifications
Electrical
| Typical power loss | 1.5 W |
|---|---|
| Supply voltage | 24 V |
Environment
| Operating temperature | 60 °C; Observe derating; -30 °C; < 0 °C as of FS07; 50 °C; Observe derating |
|---|
Identity
| Manufacturer article number | 6ES7135-6HD00-0BA1 |
|---|---|
| Product type designation | AQ 4xU/I ST |
Io
| Analog output count | 4 |
|---|
Physical
| Depth | 58 mm |
|---|---|
| Height | 73 mm |
| Product weight | 0,039 Kg; 31 g |
| Width | 15 mm |
Ordering and shipping
- Manufacturer part number
- 6ES7135-6HD00-0BA1
- Product role
- Analog output module
- Inventory method
- Procured after order; quantity is not tracked online
- Order processing
- 3–5 business days
- Estimated transit
- 6–10 business days after dispatch
- Packaged shipping weight
- 0.159 kg
